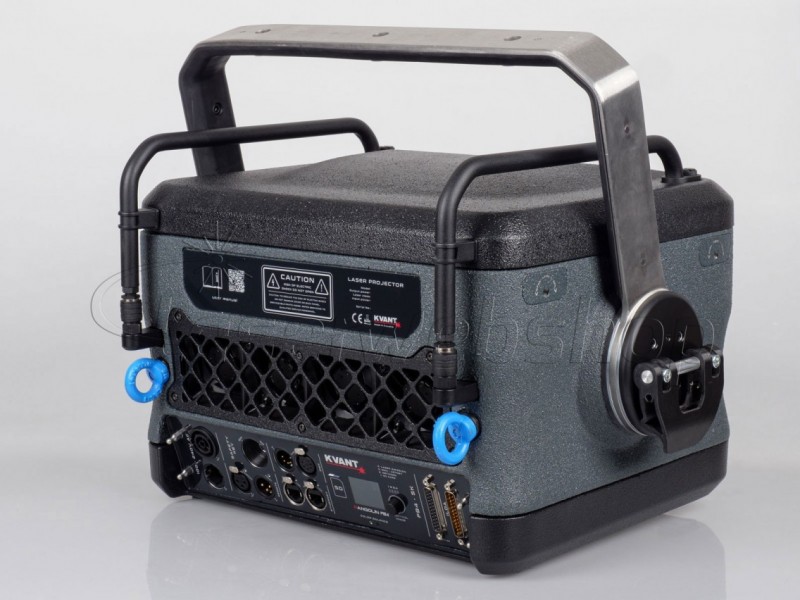

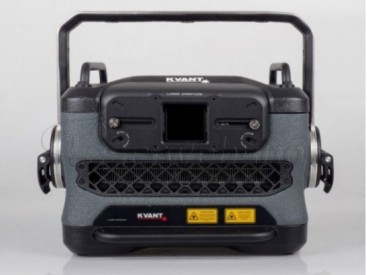

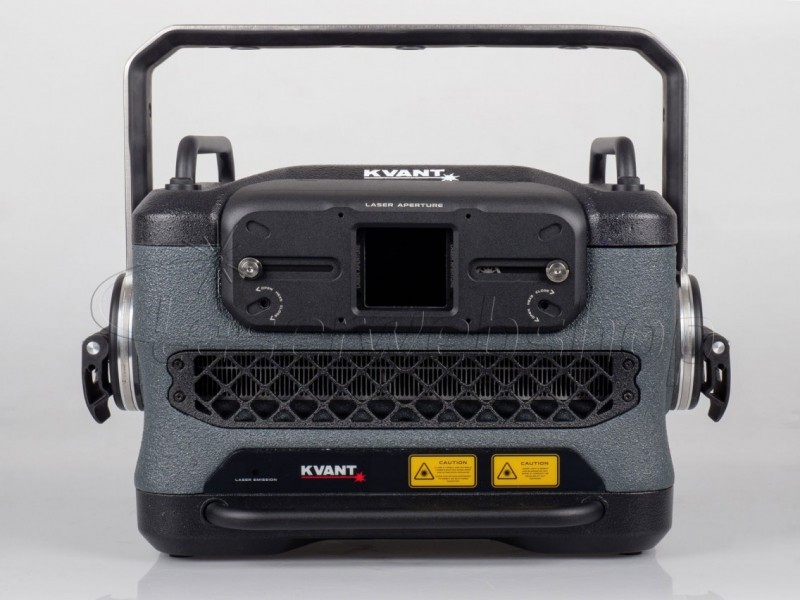

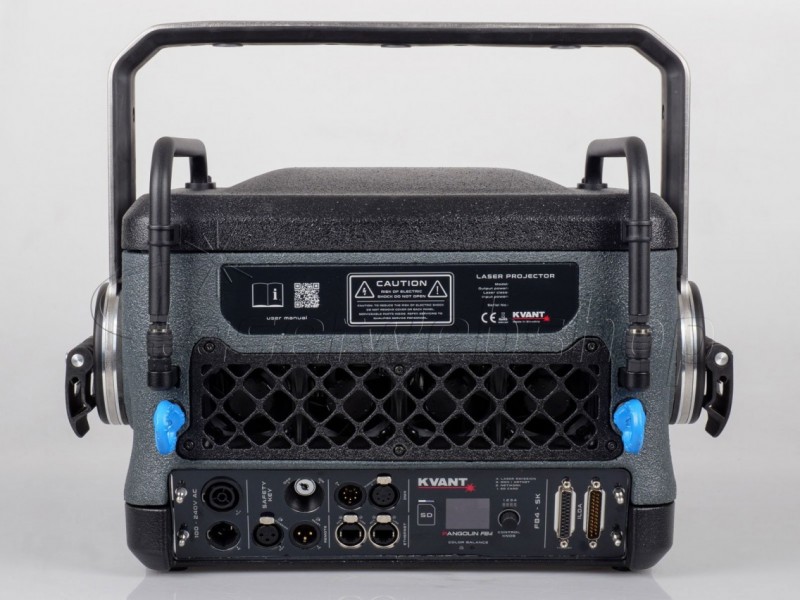

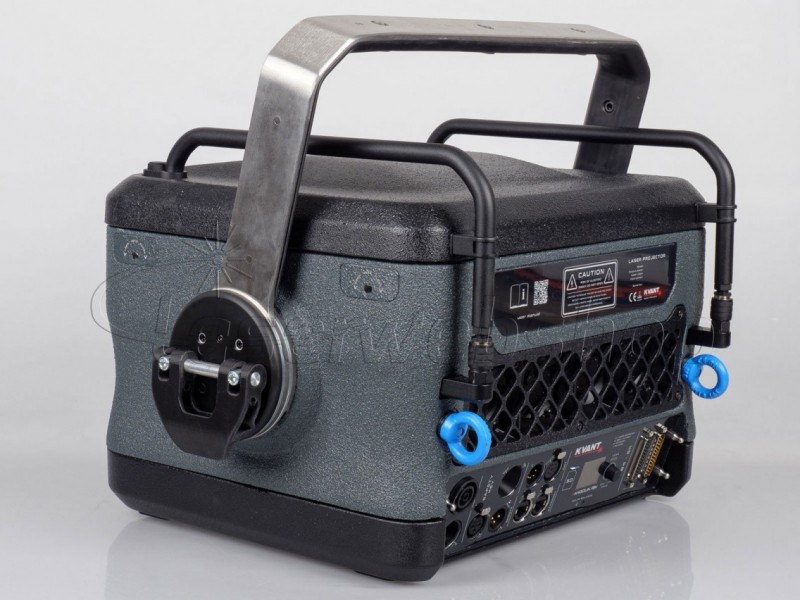

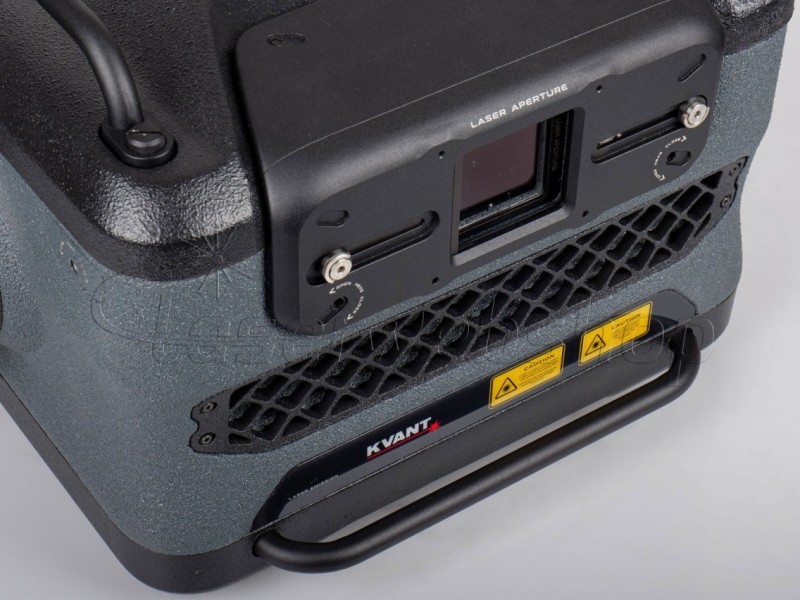

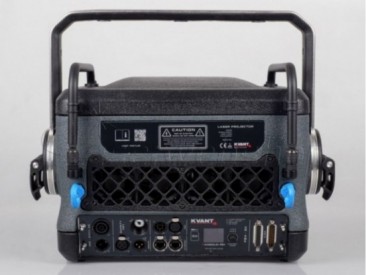

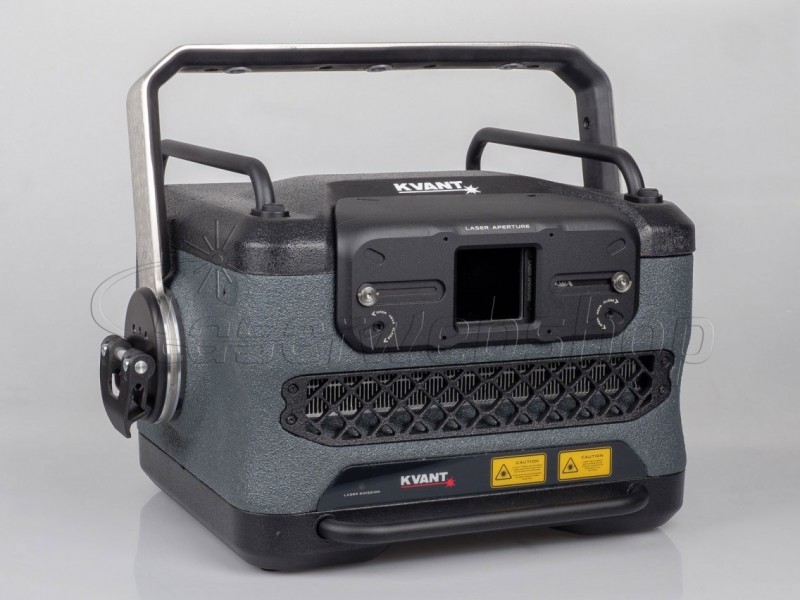

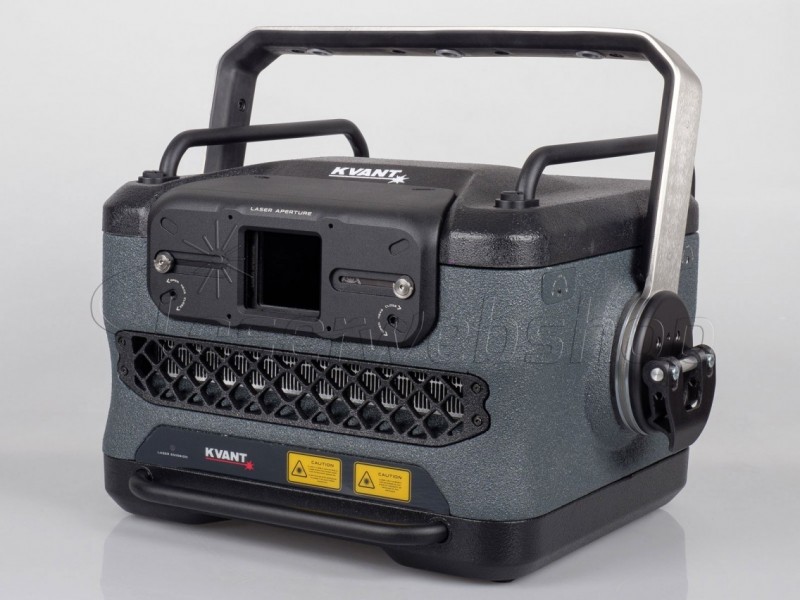

Atom 42
$23,364.15
LPKVT-AT42
Data sheet
- Total Optical Output
- 42.000mW
- Scanning Speed
- Juno - 30kpps max 50°
- Red Laser Module
- 9.000mW - 638nm
- Green Laser Module
- 13.000mW - 525nm
- Blue Laser Module
- 20.000mW - 455nm
- Beam Diameter
- 7.0x7.0mm
- Divergence
- ˂ 1.0mrad, full angle
- Analog Modulation
- 0-5V - 100kHz
- Power Consumption
- ˂ 1200VA
- Operating Temperature
- 10-35 °C
- Weight
- 31kg
- Dimensions (LxWxH)
- 396x491x310mm
