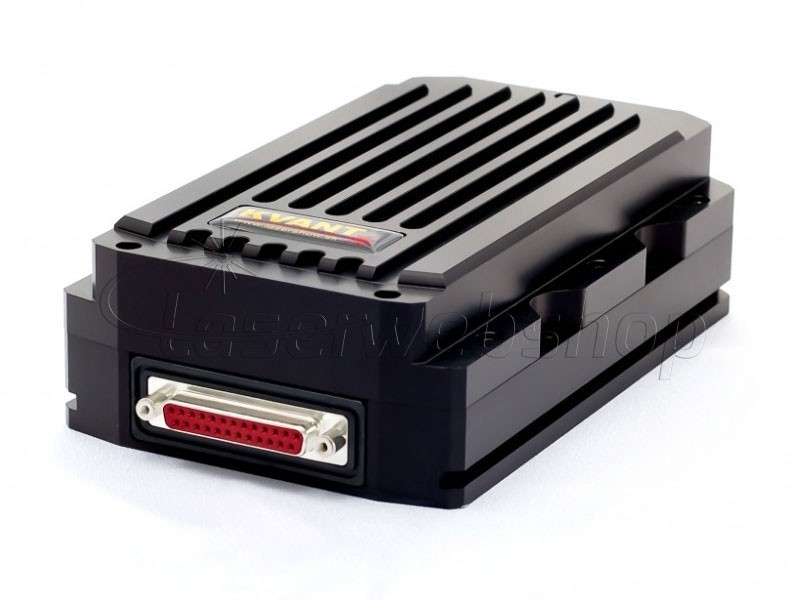

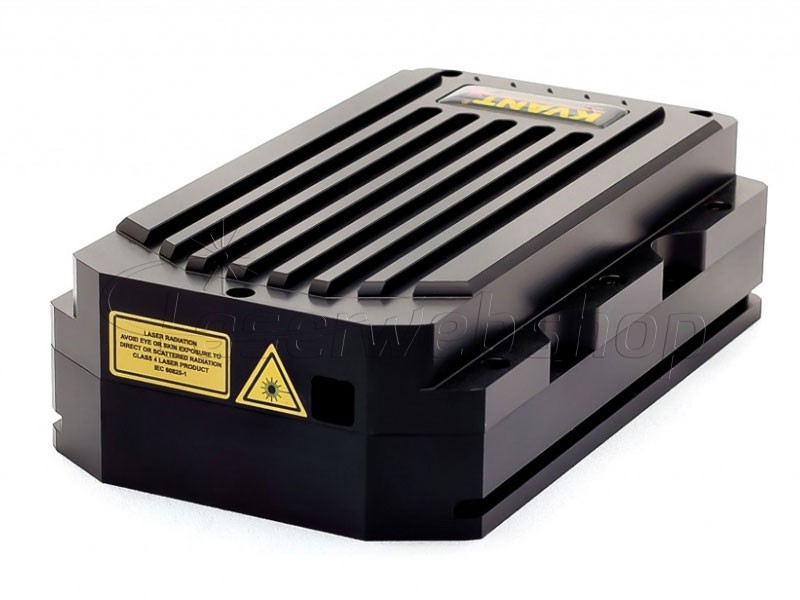

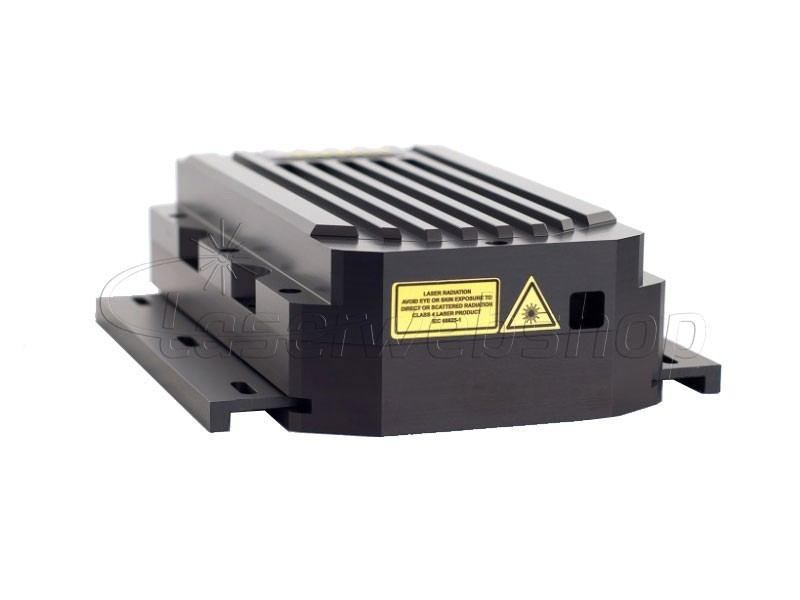

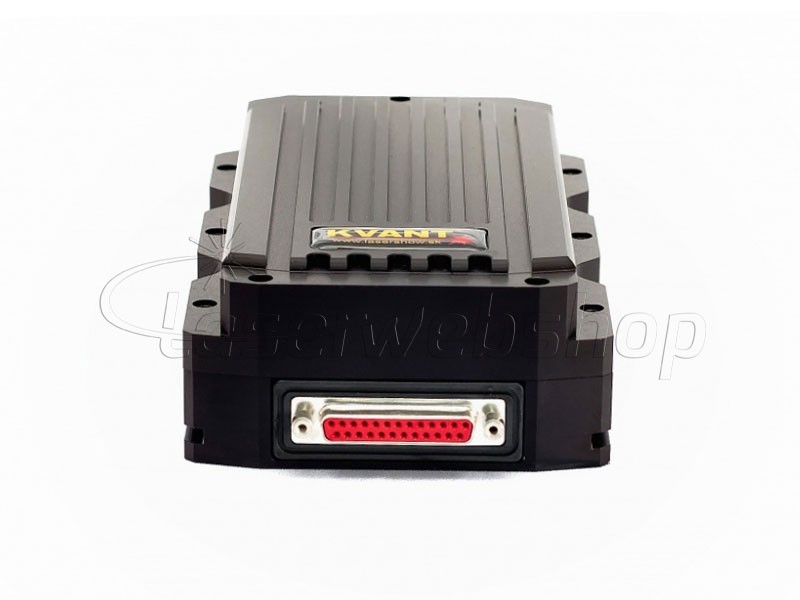

5W Combo Blue
Blue laser module with a combined wavelength of 445nm and 460nm and an output power of 5W.
Specifications
| Laser Output Power | 5.000mW |
| Wavelength | 445+460nm |
| Wavelength Torlerance | +/-5nm |
| Beam Size FWHM (H/V) | 5.0 / 5.0mm |
| Beam Divergence (Half Angle) | 0.4 / 0.3mrad |
| Linear Polarization | No |
| M^2 (H/V) | 7 / 5 |
| Modulation Frequency | 100kHz |
| Power Consumption LD | 2.0A (24V) |
| Power Consumption TEC | 6.0A (24V) |
| Input Voltage | 24V |

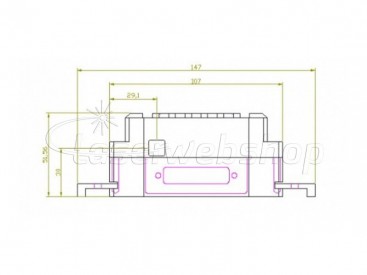

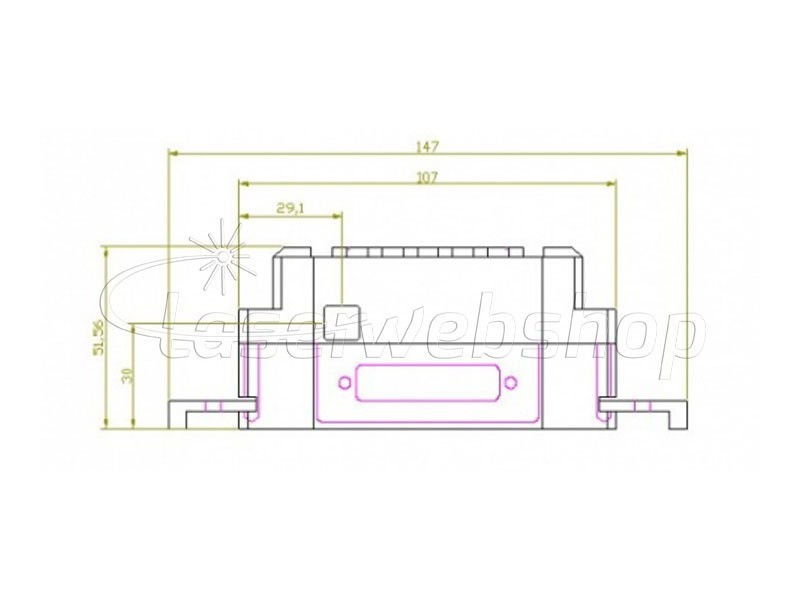

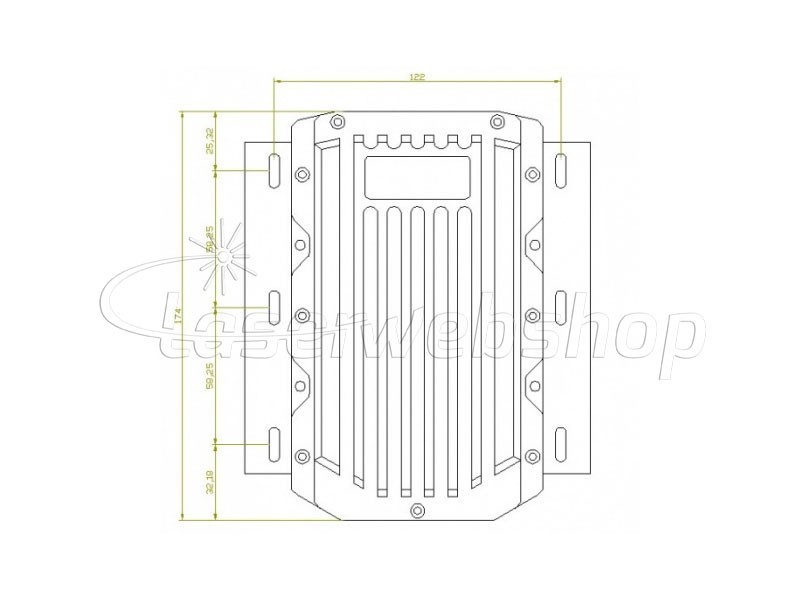

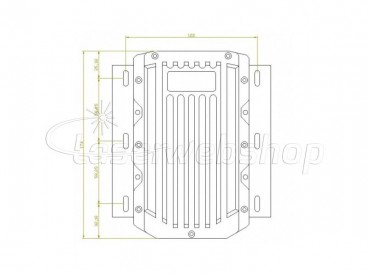

| Module Dimensions (LxWxH) | 174x107x51mm |
| Driver Dimensions (LxWxH) | 117x89x34mm |
