10W Combo Blue
Blue laser module with a combined wavelength of 445nm and 460nm and an output power of 10W.
Specifications
| Laser Output Power | 10.000mW |
| Wavelength | 445+460nm |
| Wavelength Torlerance | +/-5nm |
| Beam Size FWHM (H/V) | 5.5 / 5.5mm |
| Beam Divergence (Half Angle) | 0.4 / 0.3mrad |
| Linear Polarization | No |
| M^2 (H/V) | 8 / 8 |
| Modulation Frequency | 100kHz |
| Power Consumption LD | 3.5A (24V) |
| Power Consumption TEC | 12.0A (24V) |
| Input Voltage | 24V |

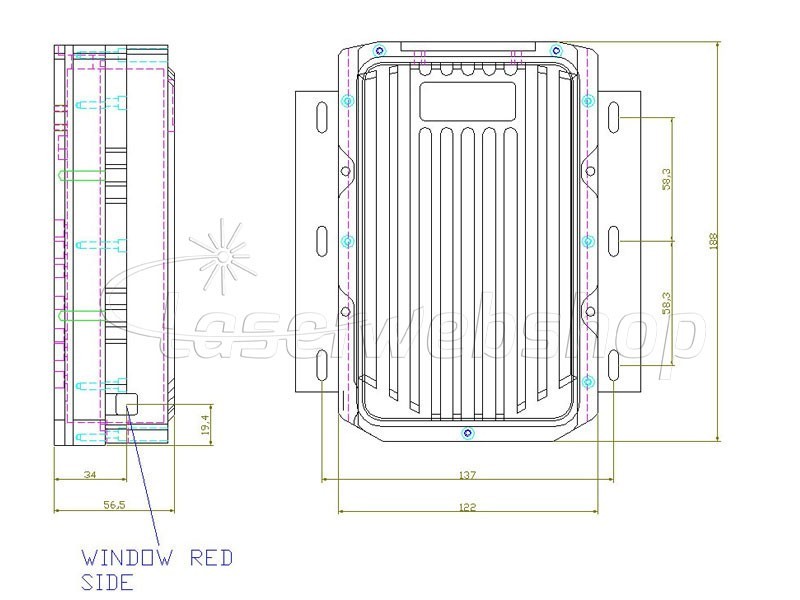

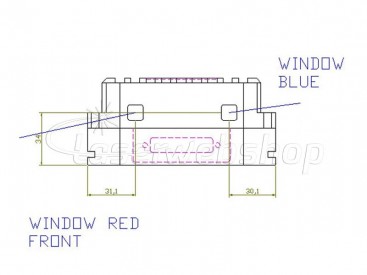

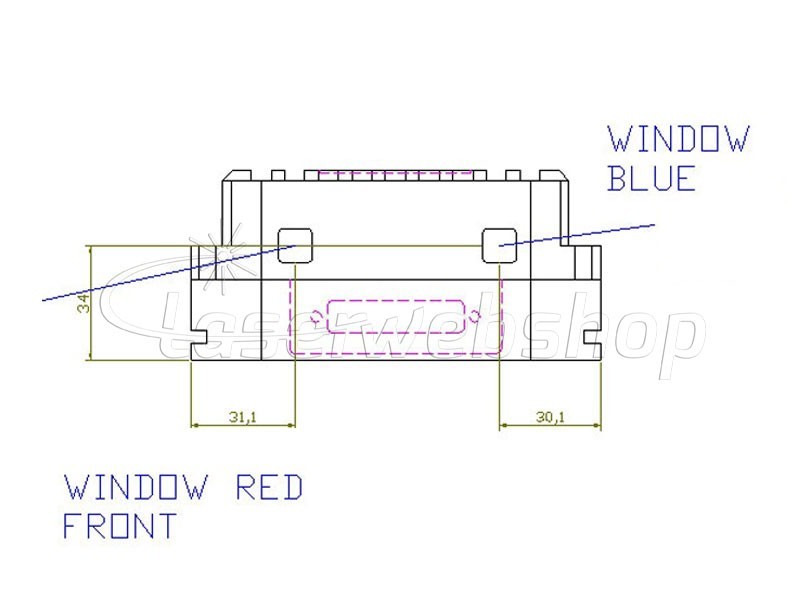

| Module Dimensions (LxWxH) | 188x122x57mm |
| Driver Dimensions (LxWxH) | 117x89x34mm |
