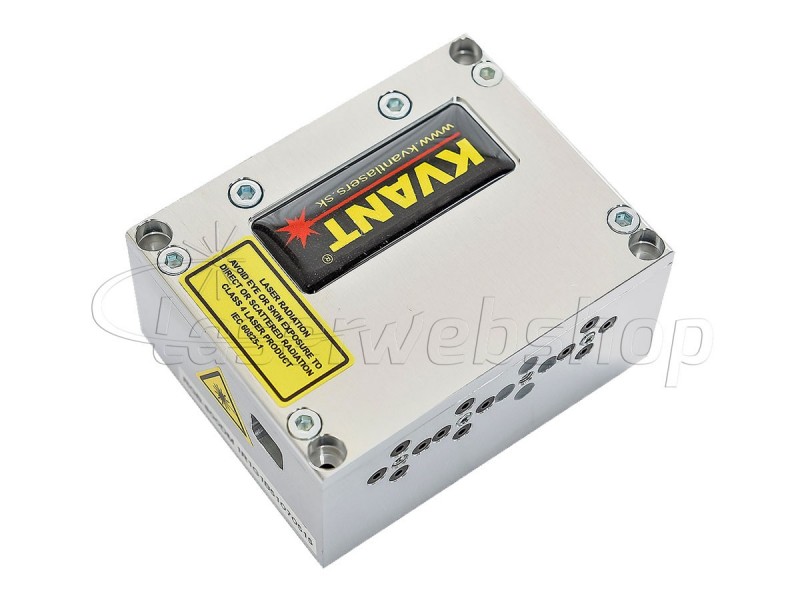

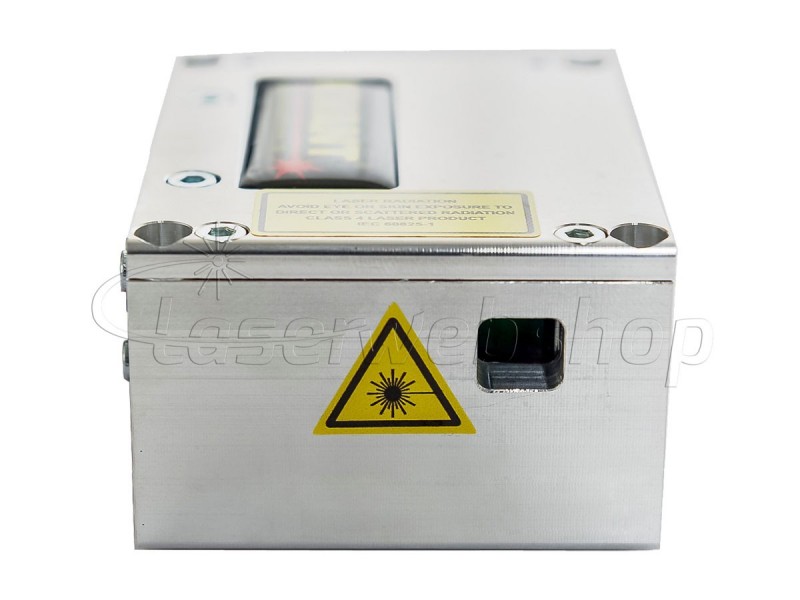

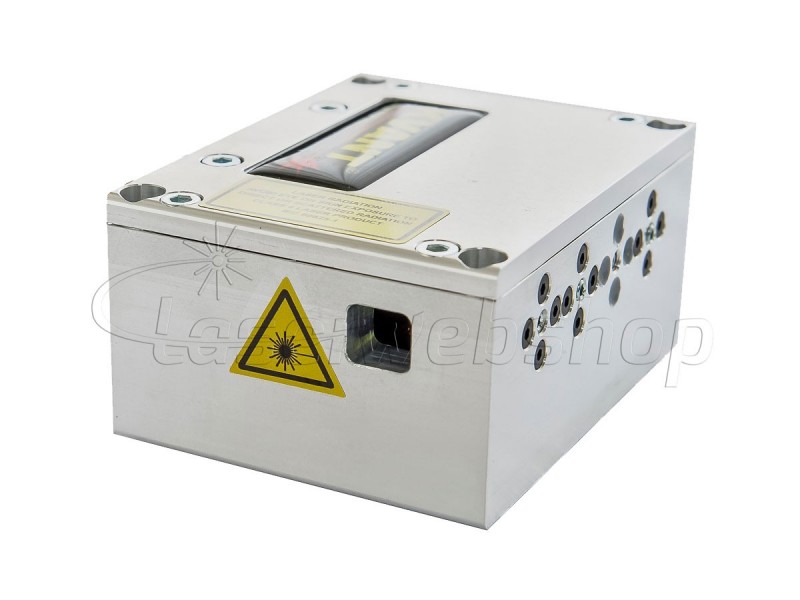

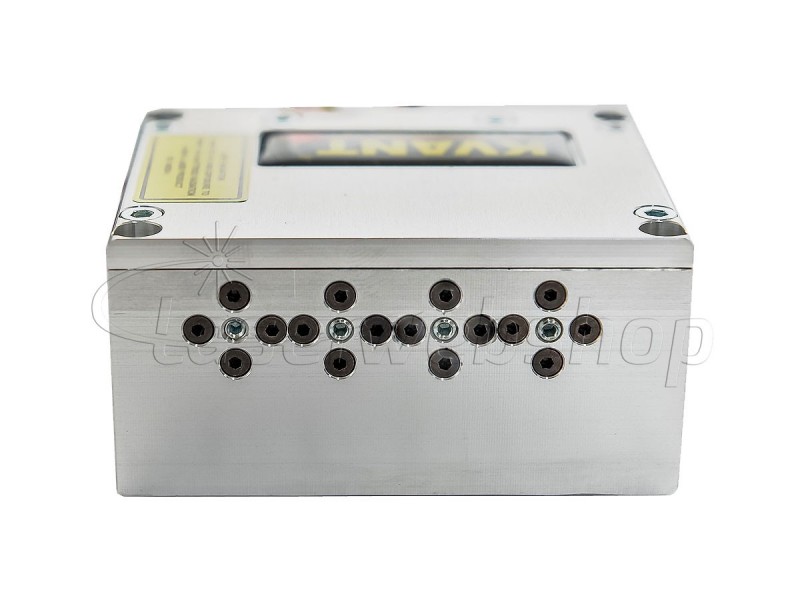

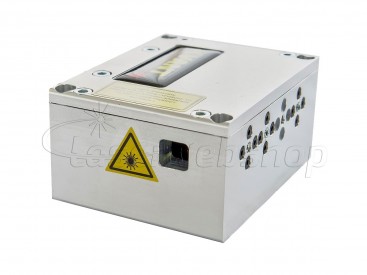

Full Color 1800mW
Full Color laser module with a combined wavelength of 445nm, 520nm and 637nm and an output power of 1.8W.
Specifications
| Laser Output Power | 1.500mW |
| Red Output Power | 340mW |
| Green Output Power | 200mW |
| Blue Output Power | 1000mW |
| Wavelength | 637+520+445nm |
| Wavelength Torlerance | +/-5nm |
| Beam Size FWHM (H/V) | 4.0 / 4.5mm |
| Beam Divergence (Half Angle) | 0.6 / 0.3mrad |
| Linear Polarization | No |
| Modulation Frequency | 50kHz |
| Power Consumption LD | 2.0A (24V) |
| Power Consumption TEC | 2.0A (24V) |
| Input Voltage | 24V |
| Module Dimensions (LxWxH) | 132x77x51mm |
| Driver Dimensions (LxWxH) | 117x89x34mm |
