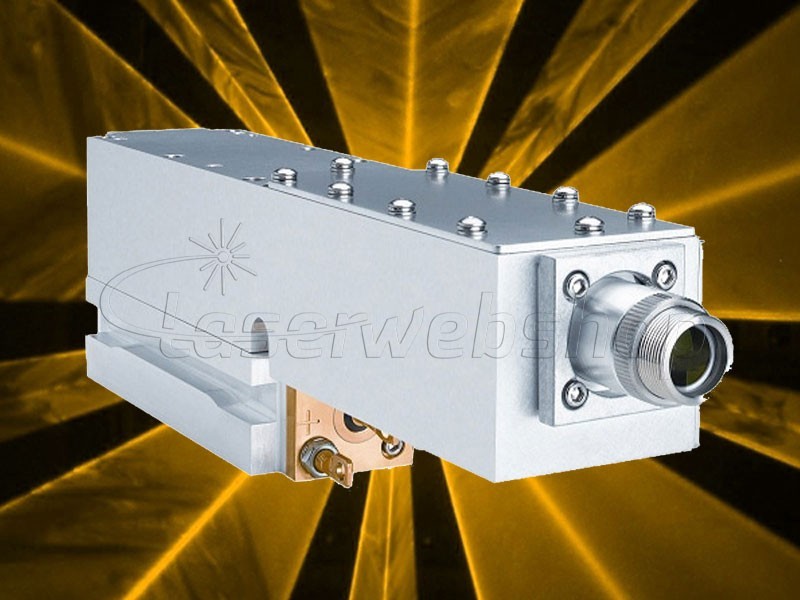

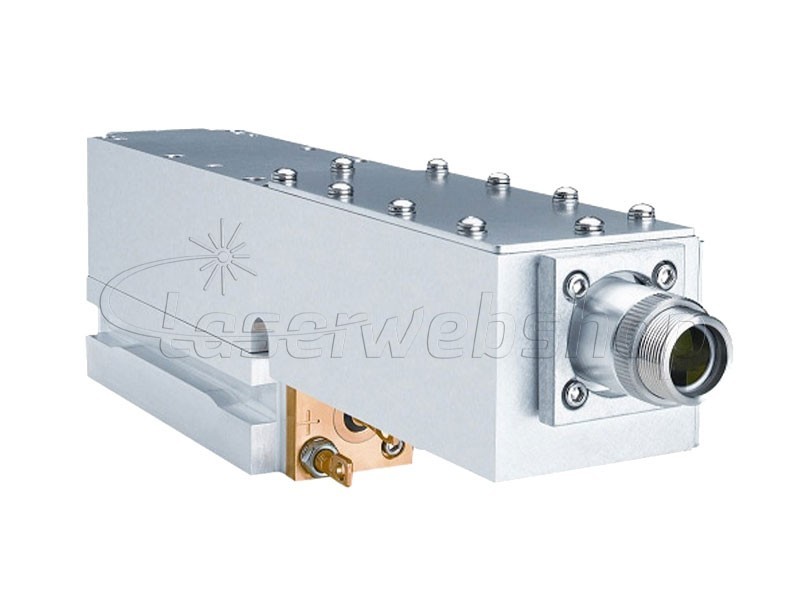

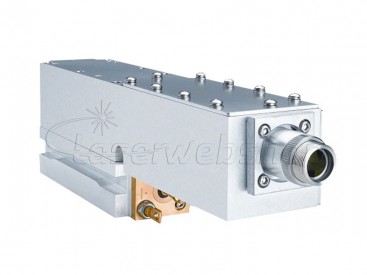

3W Orange 590nm
Orange OPS laser module with a wavelength of 590nm and an output power of 3W.
Specifications
| Laser Output Power | 3.000mW |
| Wavelength | 590nm |
| Wavelength Torlerance | +/-3nm |
| Spectral Width | ˂ 0.5nm |
| Beam Diameter (1/e^2) | 2.3mm |
| Beam Divergence (Half Angle) | ˂ 0.8mrad |
| Linear Polarization | Horizontal, 100-1 |
| M^2 (H/V) | 6 / 4 |
| Modulation Frequency | 50kHz |
| Peak Power Consumption | 40A on 1.5-2.2V |
| Module Dimensions (LxWxH) | 134x44x65mm |
