680mW Red + 1W Blue

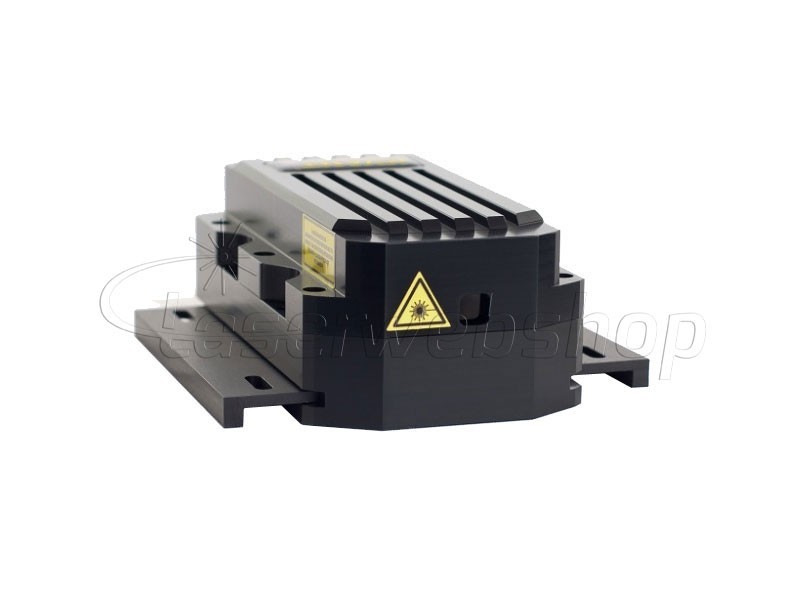

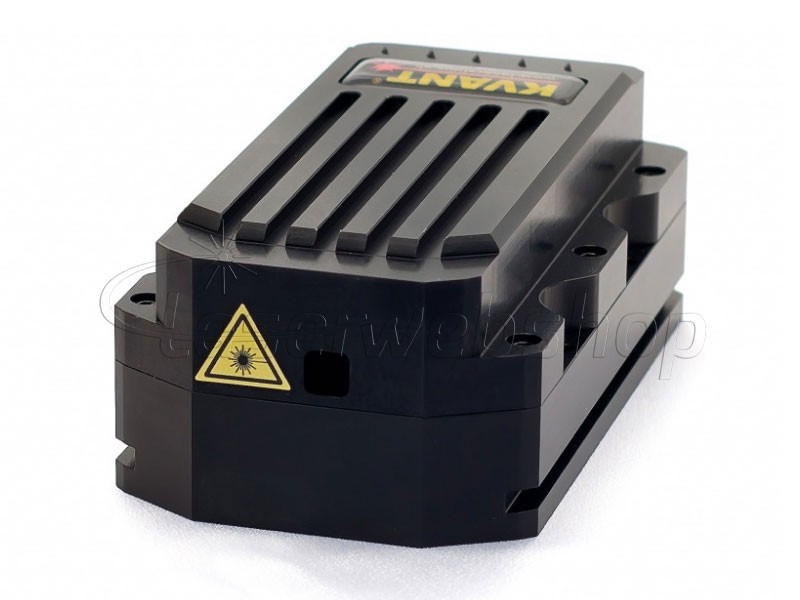

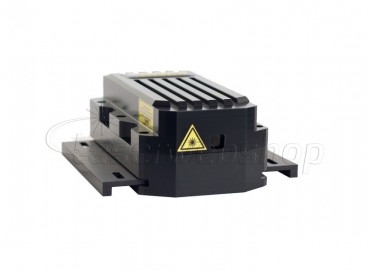

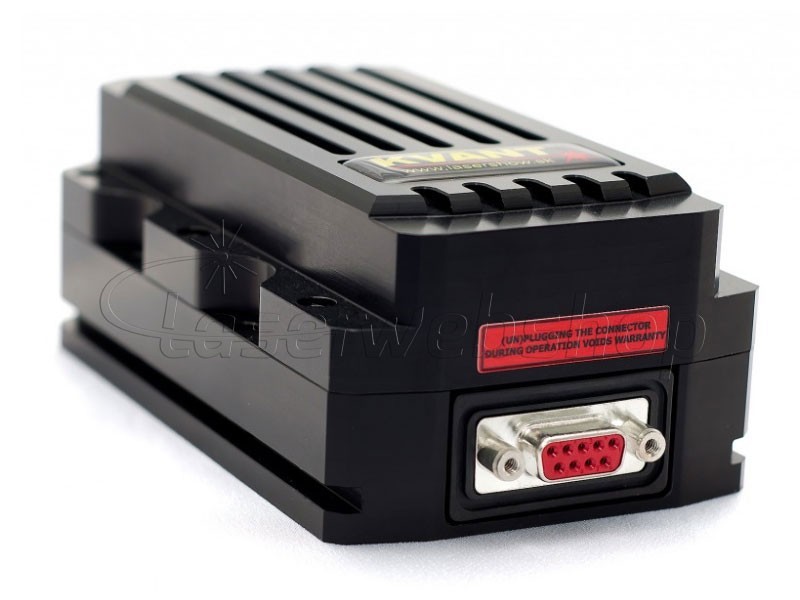

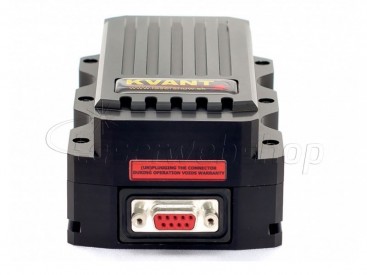

Red with Blue laser module with a combined wavelength of 637nm and 445nm and an output power of 1.7W.
Specifications
| Laser Output Power | 1.700mW |
| Red Output Power | 680mW |
| Blue Output Power | 1000mW |
| Wavelength | 637+445nm |
| Wavelength Torlerance | +/-5nm |
| Beam Size FWHM (H/V) | 3.0 / 4.5mm |
| Beam Divergence (Half Angle) | 0.7 / 0.5mrad |
| Linear Polarization | Yes |
| Modulation Frequency | 100kHz |
| Power Consumption LD | 1.5A (24V) |
| Power Consumption TEC | 1.5A (24V) |
| Input Voltage | 24V |

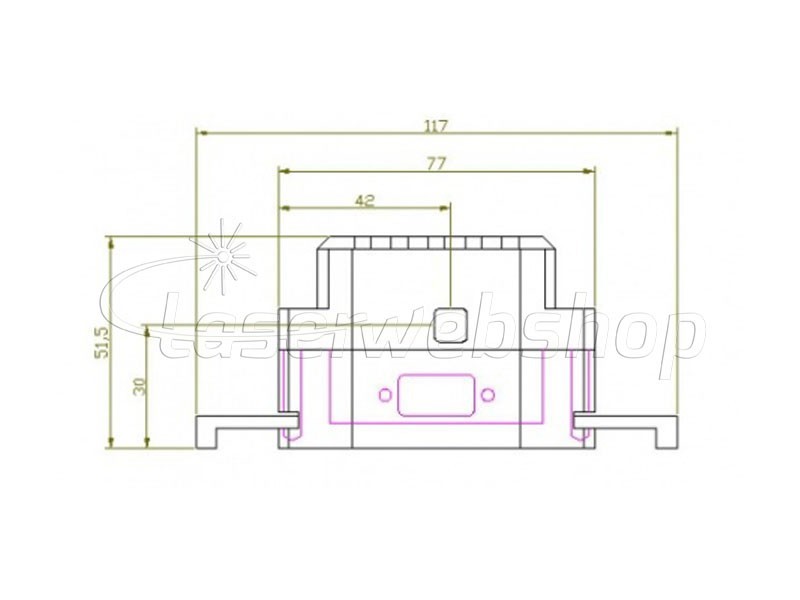

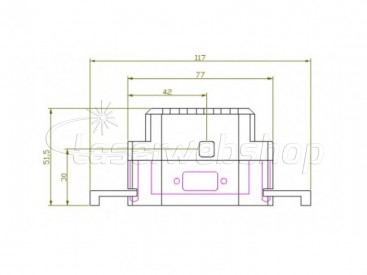

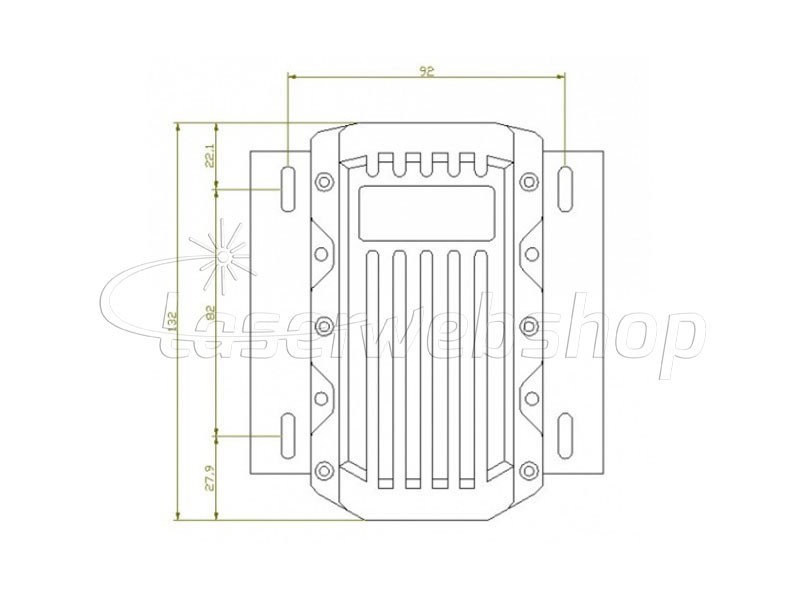

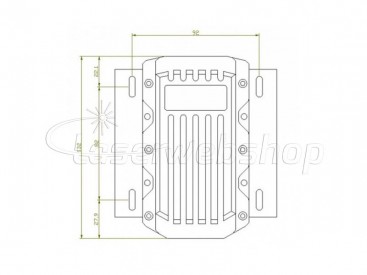

| Module Dimensions (LxWxH) | 132x77x51mm |
| Driver Dimensions (LxWxH) | 117x89x34mm |
