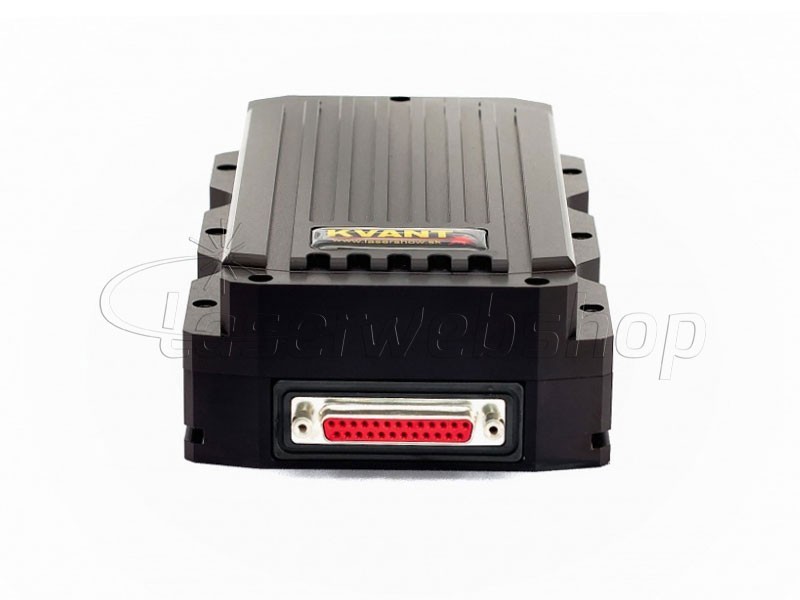

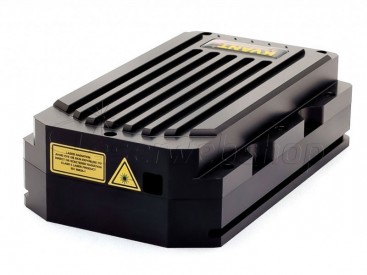

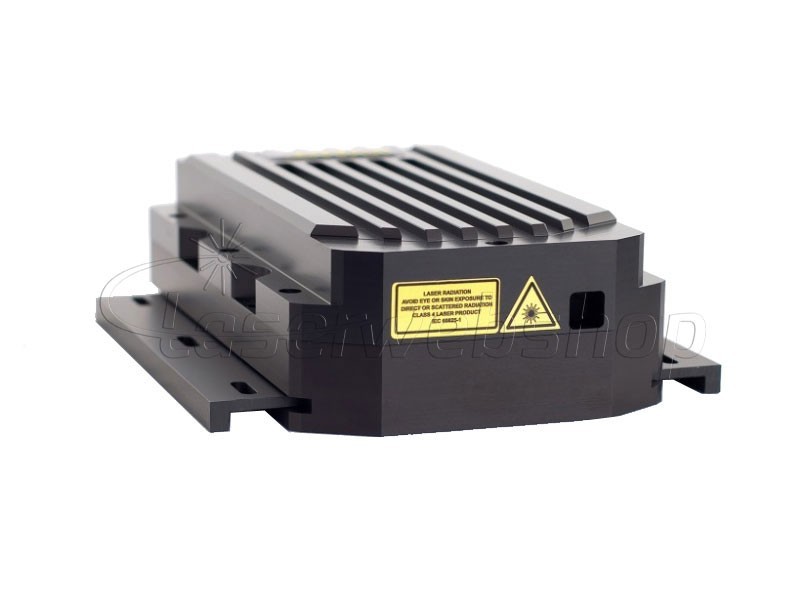

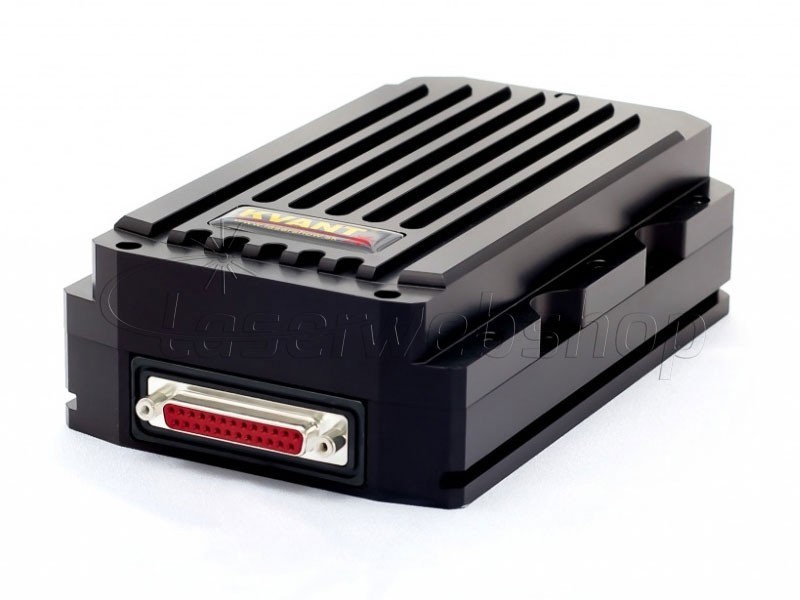

1.3W Red + 1.5W Blue
Red with Blue laser module with a combined wavelength of 637nm and 445nm and an output power of 2.8W.
Specifications
| Laser Output Power | 2.800mW |
| Red Output Power | 1.300mW |
| Blue Output Power | 1500mW |
| Wavelength | 637+445nm |
| Wavelength Torlerance | +/-5nm |
| Beam Size FWHM (H/V) | 3.5 / 4.5mm |
| Beam Divergence (Half Angle) | 0.6 / 0.5mrad |
| Linear Polarization | Nos |
| Modulation Frequency | 100kHz |
| Power Consumption LD | 2.0A (24V) |
| Power Consumption TEC | 3.0A (24V) |
| Input Voltage | 24V |

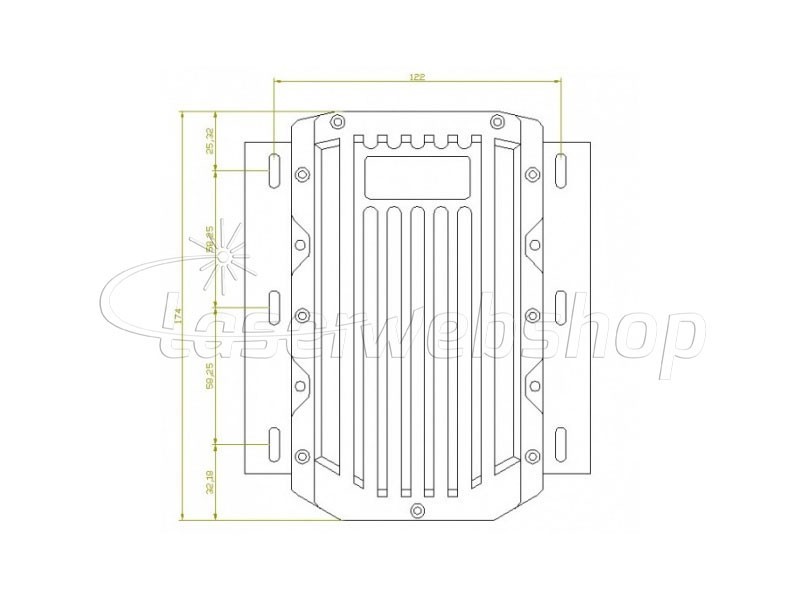

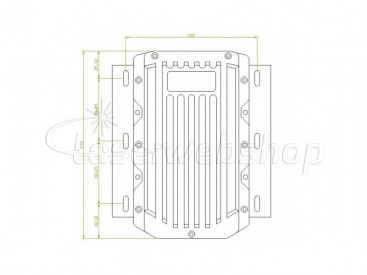

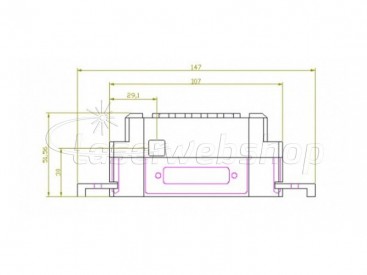

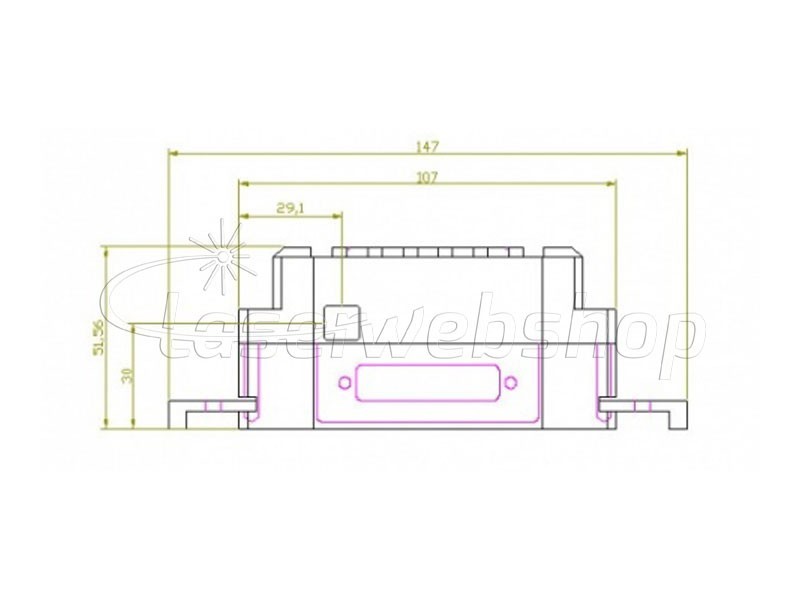

| Module Dimensions (LxWxH) | 174x107x51mm |
| Driver Dimensions (LxWxH) | 117x89x34mm |
