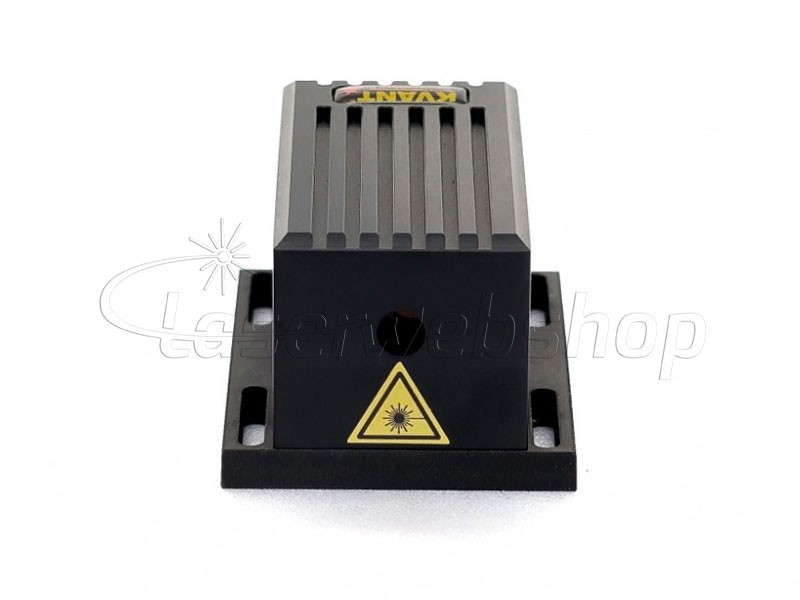

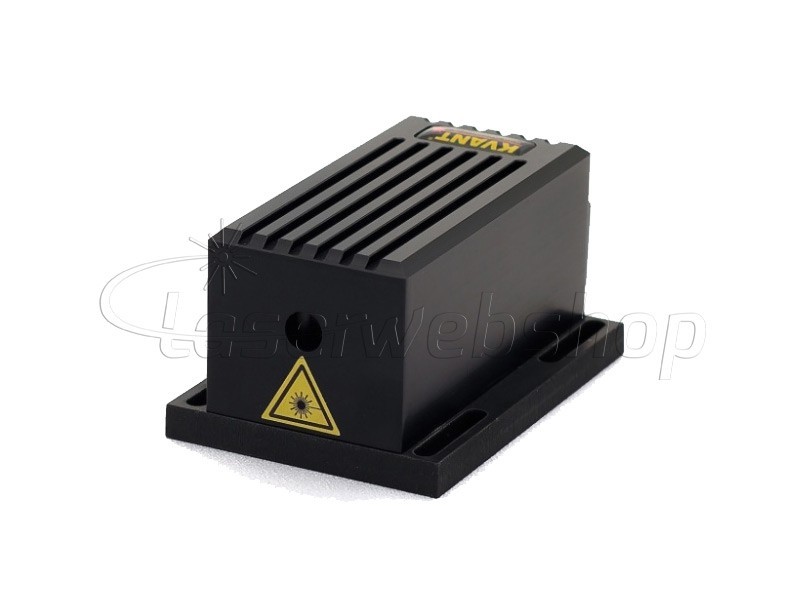

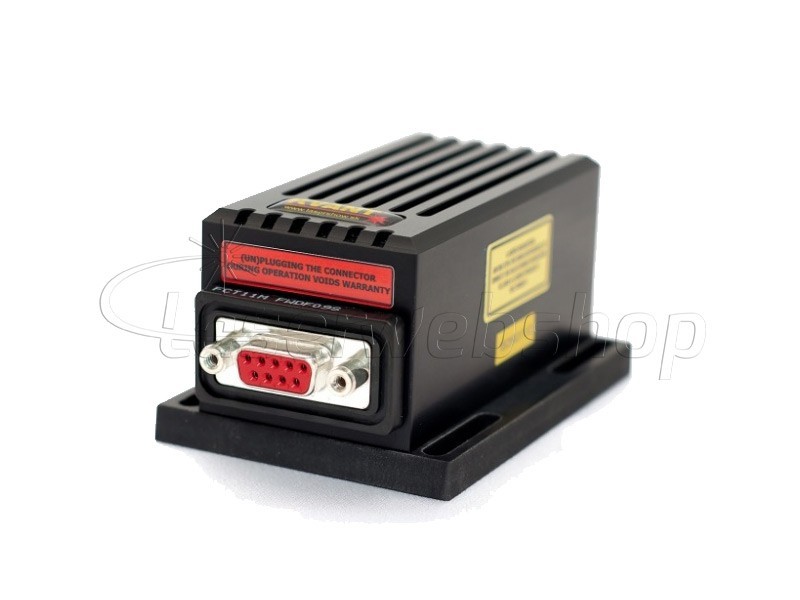

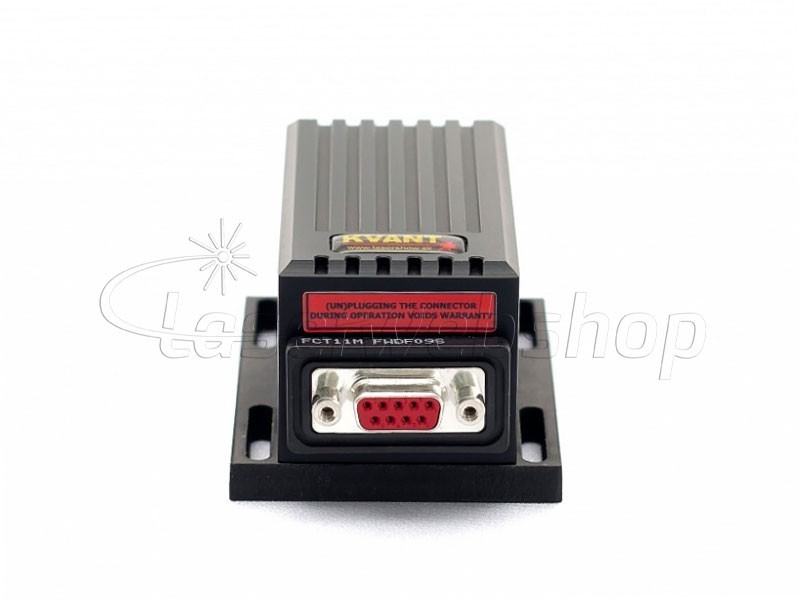

170mW Bright Red
Bright Red laser module with a wavelength of 637nm and an output power of 170mW.
Specifications
| Laser Output Power | 170mW |
| Wavelength | 637nm |
| Wavelength Torlerance | +/-5nm |
| Beam Size FWHM (H/V) | 1.4 / 3.0mm |
| Beam Divergence (Half Angle) | 0.2mrad |
| Linear Polarization | Yes |
| M^2 (H/V) | 1 / 2 |
| Modulation Frequency | 100kHz |
| Power Consumption LD | 0.5A (24V) |
| Power Consumption TEC | 1.5A (24V) |
| Input Voltage | 12 or 24V |

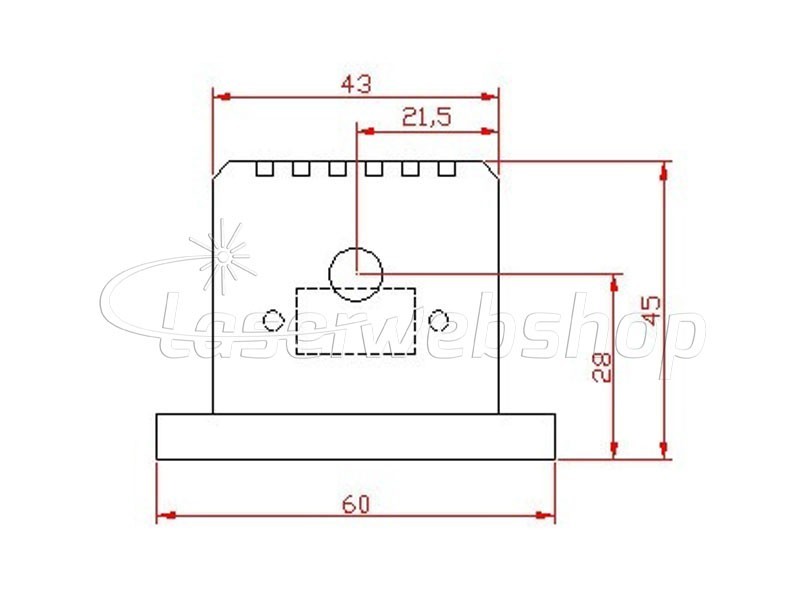

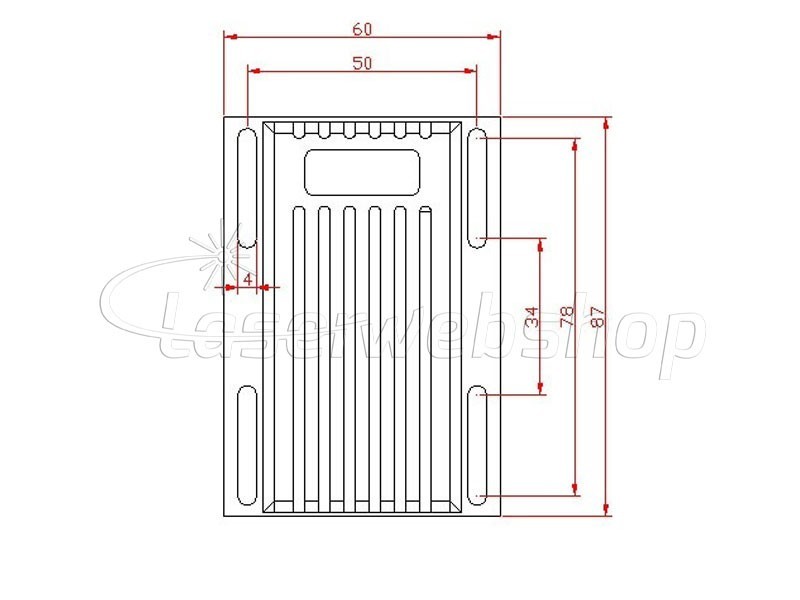

| Module Dimensions (LxWxH) | 87x60x45mm |
| Driver Dimensions (LxWxH) | 117x89x34mm |
