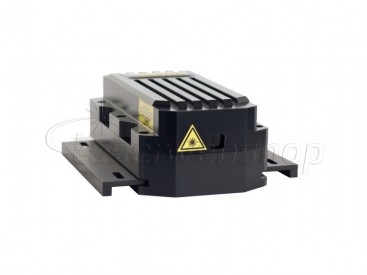

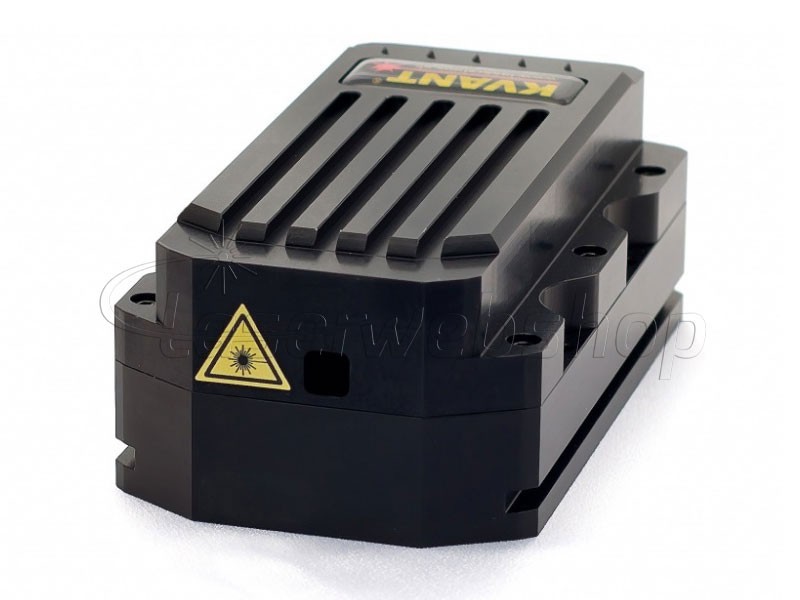

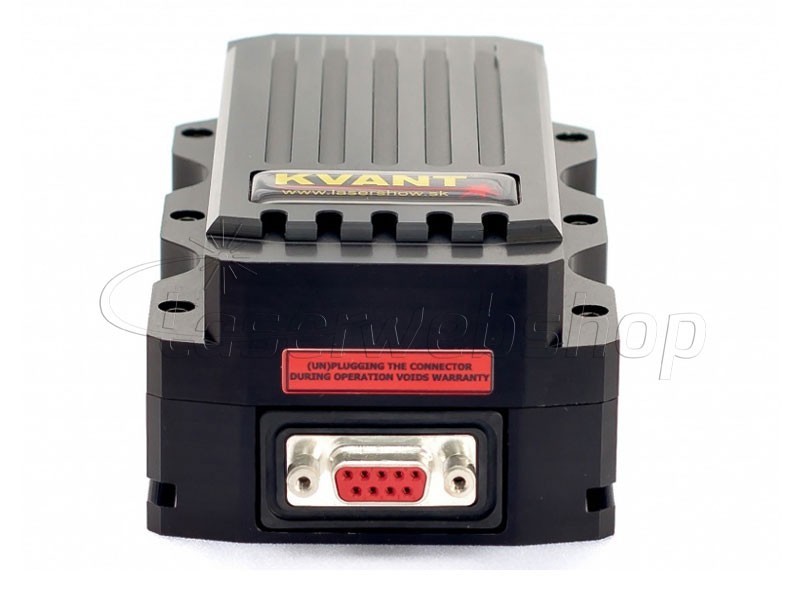

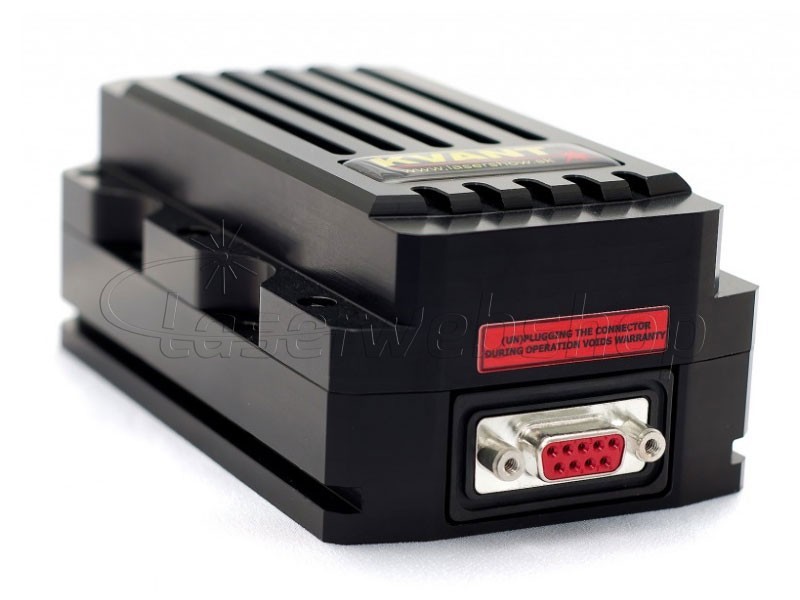

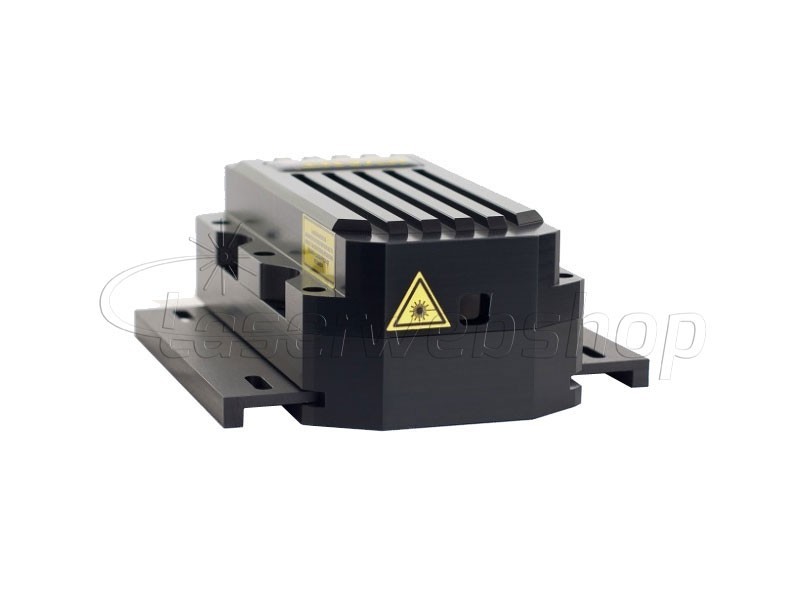

500mW Deep Red
Deep Red laser module with a wavelength of 660nm and an output power of 500mW.
Specifications
| Laser Output Power | 500mW |
| Wavelength | 660nm |
| Wavelength Torlerance | +/-5nm |
| Beam Size FWHM (H/V) | 2.5 / 3.5mm |
| Beam Divergence (Half Angle) | 0.5mrad |
| Linear Polarization | Yes |
| M^2 (H/V) | 5 / 7 |
| Modulation Frequency | 100kHz |
| Power Consumption LD | 0.5A (24V) |
| Power Consumption TEC | 1.5A (24V) |
| Input Voltage | 12 or 24V |

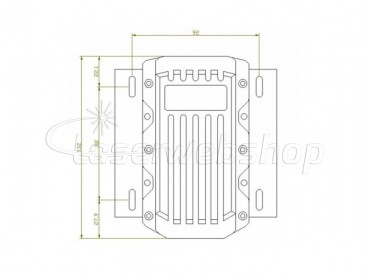

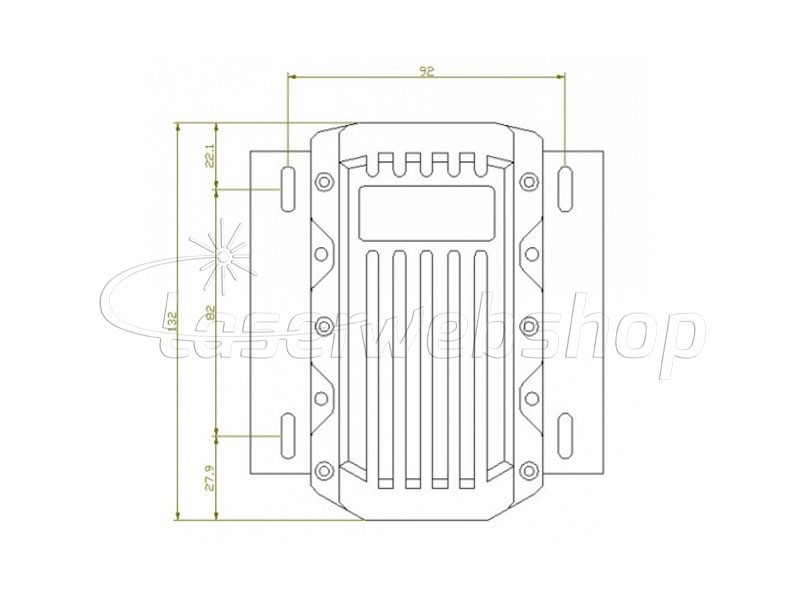

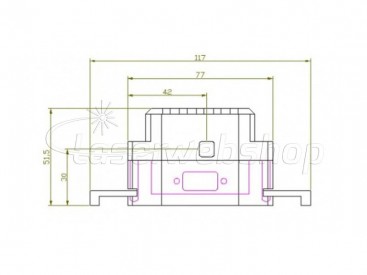

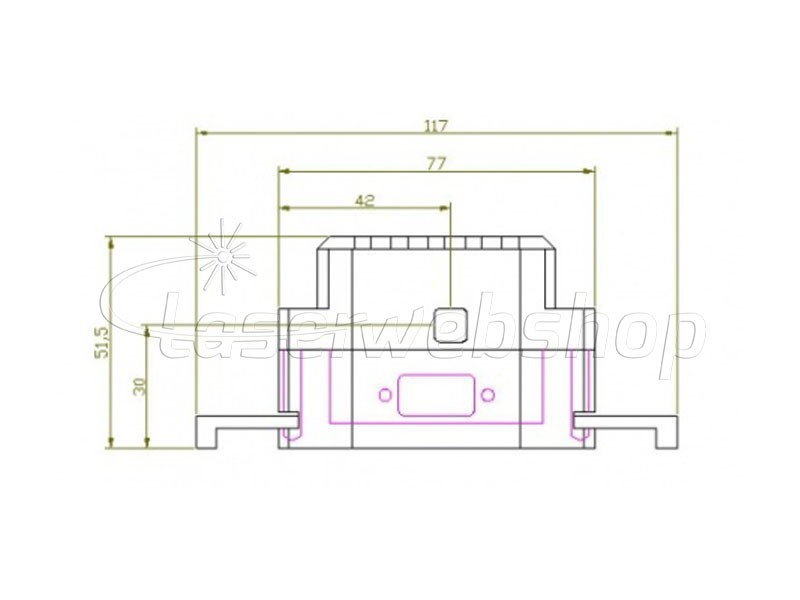

| Module Dimensions (LxWxH) | 132x77x51mm |
| Driver Dimensions (LxWxH) | 117x89x34mm |
