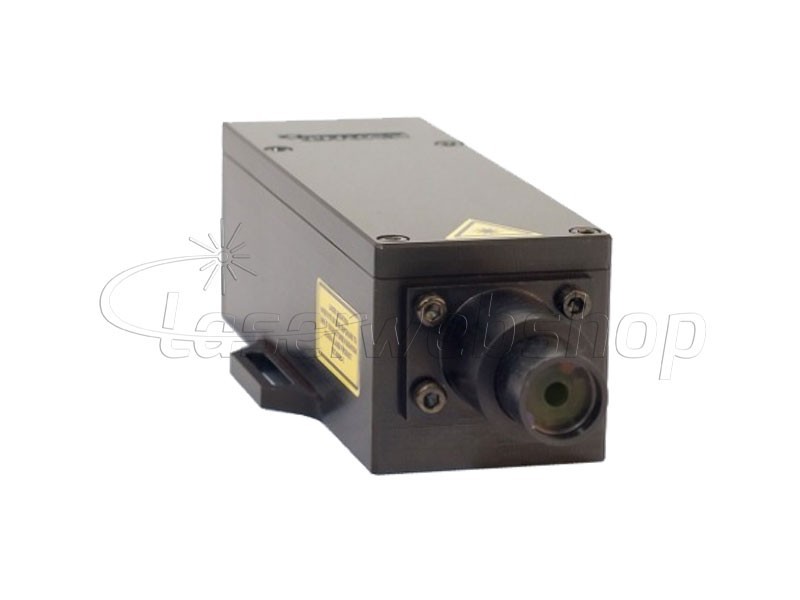

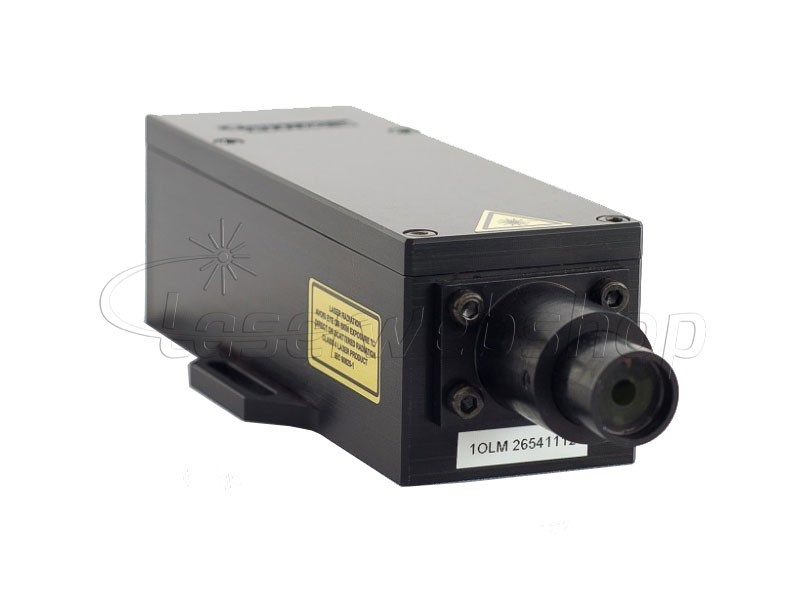

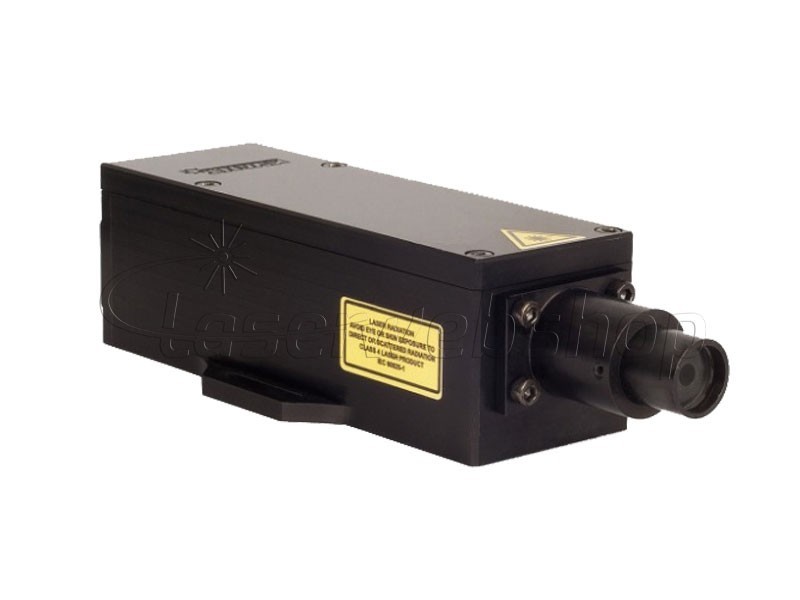

20mW UV 320nm
Scientific laser module with a wavelength of 320nm and an output power of 20mW.
Specifications
| Laser Output Power | 20mW |
| Wavelength | 320nm |
| Wavelength Torlerance | +/-5nm |
| Beam Structure | TEM00 |
| Beam Diameter (1/e^2) | 3.0mm |
| Beam Divergence (Half Angle) | 0.2mrad |
| Linear Polarization | Yes |
| M^2 | ˂ 1.1 |
| Modulation Frequency | 10kHz |
| OEM Driver Peak Power | 2.5A (24V) |
| Input Voltage | 24V |
| Module Dimensions (LxWxH) | 120x59x40mm |
| Driver Dimensions (LxWxH) | 117x89x34mm |
