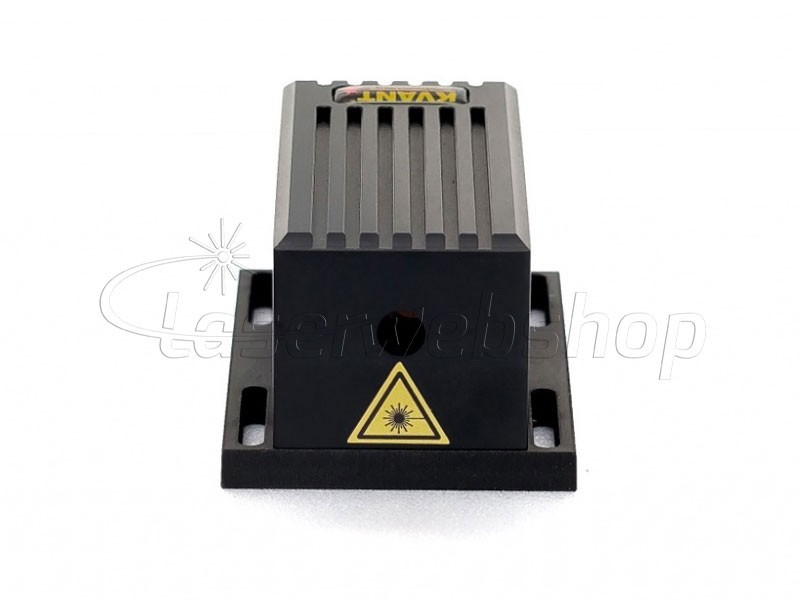

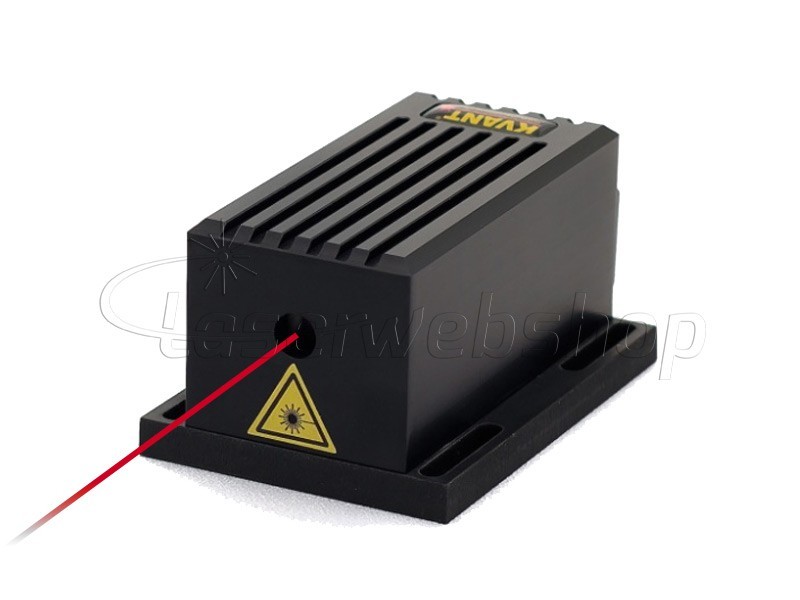

120mW Red 660nm
Scientific laser module with a wavelength of 660nm and an output power of 120mW.
Specifications
| Laser Output Power | 120mW |
| Wavelength | 660nm |
| Wavelength Torlerance | +/-5nm |
| Beam Structure | TEM00 |
| Beam Diameter (1/e^2) | 4.0mm |
| Beam Divergence (Half Angle) | 0.2mrad |
| Linear Polarization | Yes |
| M^2 | +/-1 |
| Modulation Frequency | 10kHz |
| OEM Driver Peak Power | 2.0A (24V) |
| Input Voltage | 24V |

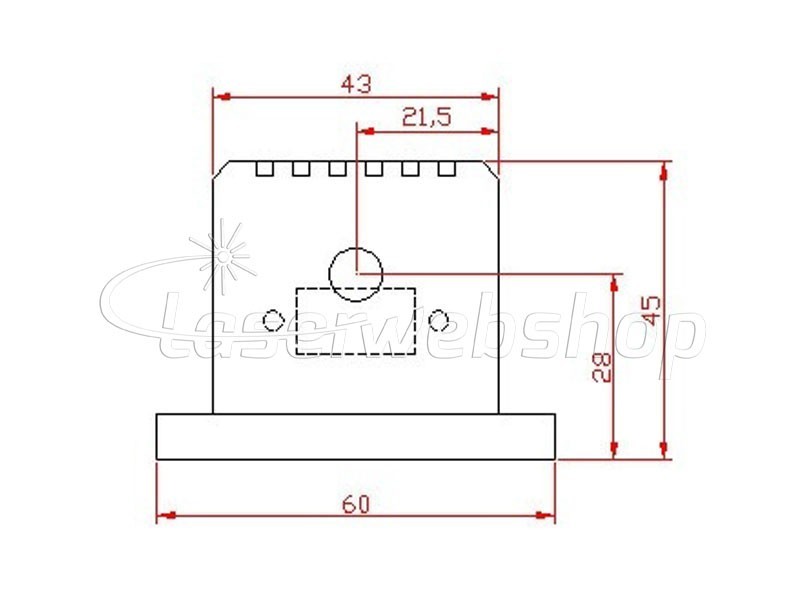

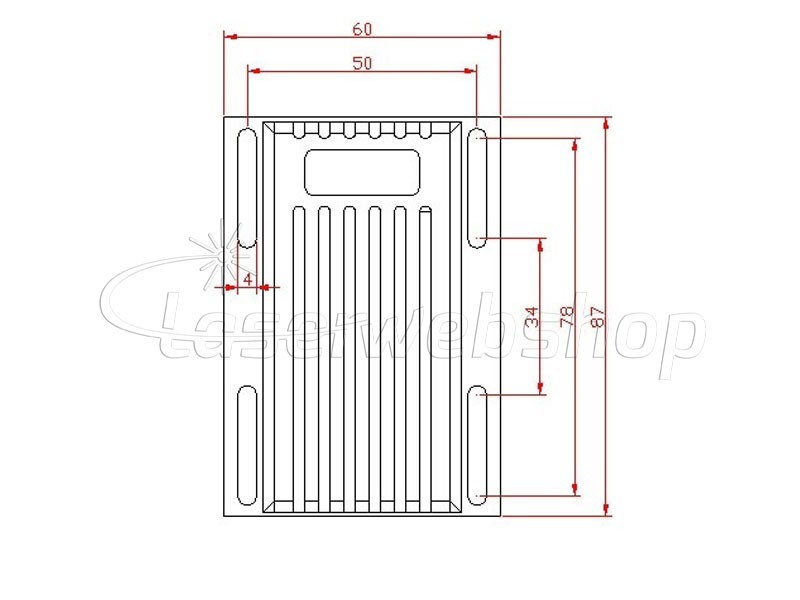

| Module Dimensions (LxWxH) | 87x60x45mm |
| Driver Dimensions (LxWxH) | 117x89x34mm |
