Specificaties
| Laser Output Power | 10.000mW |
| Wavelength | 520nm |
| Wavelength Torlerance | +/-5nm |
| Beam Size FWHM (H/V) | 6.5 / 5.5mm |
| Beam Divergence (Half Angle) | 0.7 / 0.3mrad |
| Linear Polarization | No |
| M^2 (H/V) | 16 / 5 |
| Modulation Frequency | 100kHz |
| Power Consumption LD | 6.0A (24V) |
| Power Consumption TEC | 12.0A (24V) |
| Input Voltage | 24V |

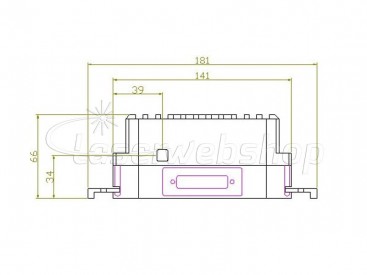

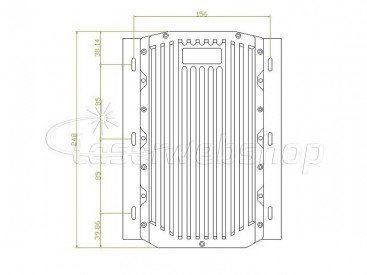

| Module Dimensions (LxWxH) | 248x141x66mm |
| Driver Dimensions (LxWxH) | 117x89x34mm |
